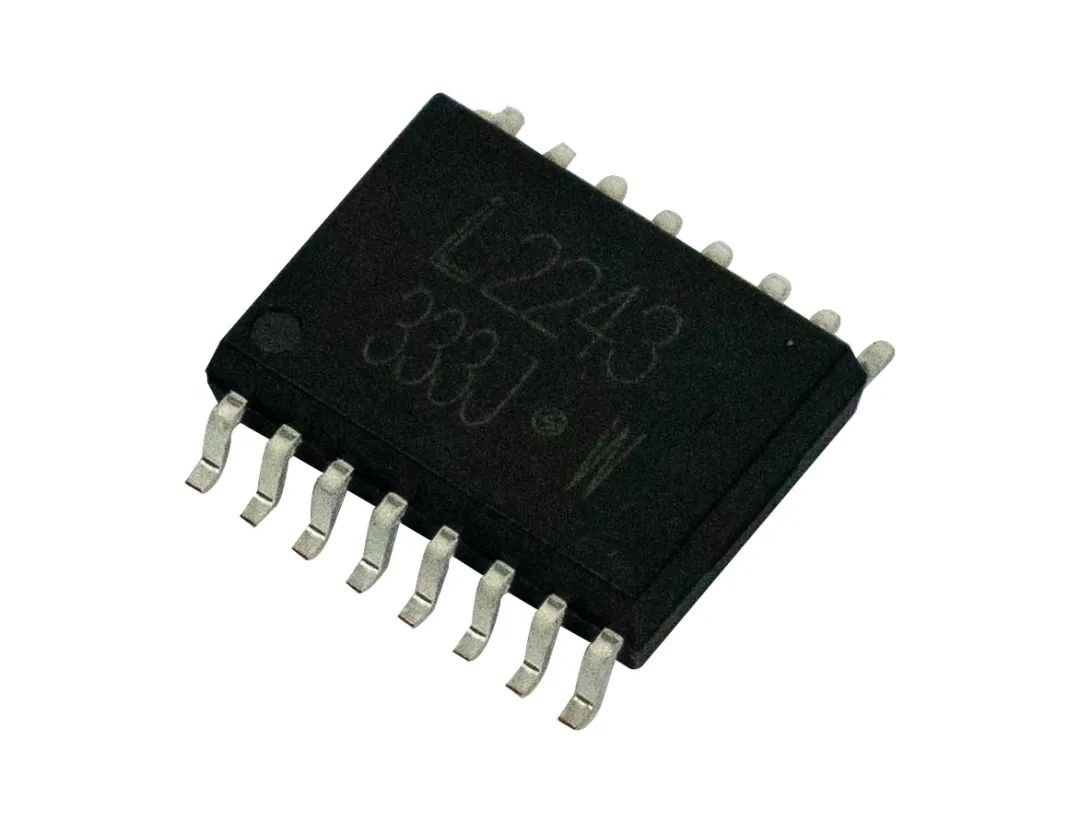

In high-voltage application scenarios such as frequency converters and servo drives, the reliable driving and real-time protection of IGBTs have always been pain points in design. The LTV-333J optocouplers launched by LITEON integrate 5A peak driving, desaturation detection, and fault feedback. Certified with a peak insulation voltage of 1414V and a wide temperature range from -40°C to 105°C, they provide a "full-stack" protection solution for industrial power electronics system.

Technical highlights: Tripleprotection makes a powerful debut.

1. Three-in-one intelligent protection

• VCE desaturation detection: real-time monitoring of IGBT overcurrent (7V threshold with ±10% accuracy), triggering protection within 5μs

• Active Miller clamping: eliminates the risk of parasitic conduction and supports a peak clamping current of 1.7A.

• UVLO fault feedback: power supply undervoltage self-locking, realizing "wired OR" alarm through the open-collector FAULT pin.

2. Extreme-speed driving performance

• 5A peak output current to drive 900A/1200V IGBT

• Ultra-low transmission delay of 200 ns and pulse width distortion of ±100 ns, suitable for high-frequency switching scenarios.

3. Military-grade security protection

• 50 kV/μs common-mode rejection ratio (under 1500 V interference)

• Certified with UL 5000Vrms/1min and compliant with IEC/EN 60747-5-5 safety standards.

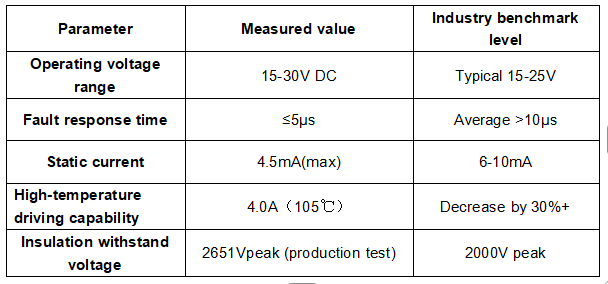

Actual measured performance: Data testifies to reliability

Scenario adaptation: focus on core industrial scenarios

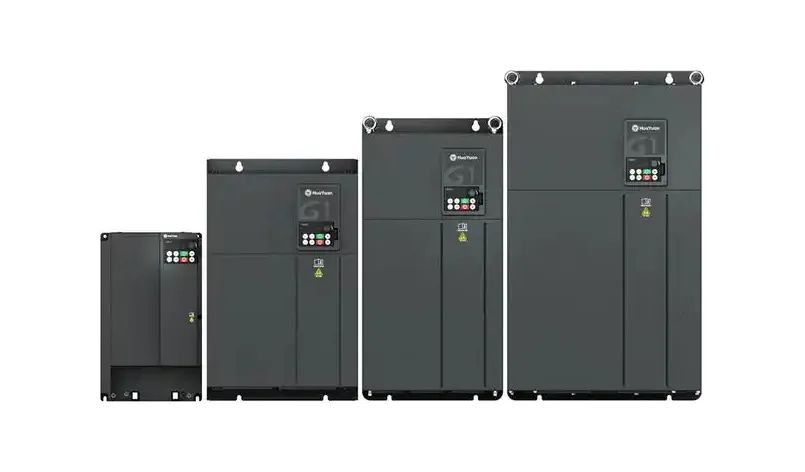

1. Variable frequency and motor drive

• Directly driving the 1200V IGBT module. It has built-in desaturation detection to replace external discrete circuits, simplifying the inverter design.

• Application case: After adopting a domestic servo drive, the area of the protection circuit has been reduced by 60%.

2. Industrial UPS power supply

• With an anti-interference ability of 50kV/μs, it can effectively resist sudden changes in bus voltage and ensure the reliability of high - low voltage isolation.

3. BLDC motor controller

• -40℃ cold start guarantee, combined with active Miller clamping to solve the risk of motor stall and tube burning.

Quality service: Full-link guarantee system

• Manufacturing standard: MSL Level 1 moisture protection level, compatible with JEDEC soldering process

• Delivery guarantee: Tapecarrier packaging (850 pcs/reel), supporting automated pick-and-place.

• Lifecycle: An industrial-grade temperature verification model that provides a complete curve starting from -40°C.

​​​​​​​• Risk warning: Non automotive/military-grade products. Focus on general industrial applications.
